Oscillating Wound Stainless Steel Banding

Delivery Time: Please contact us

Supply Ability: 10000pcs/day

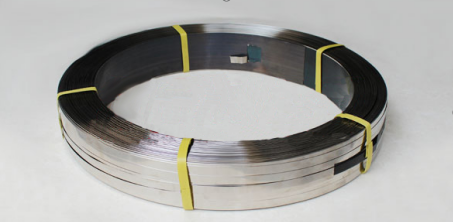

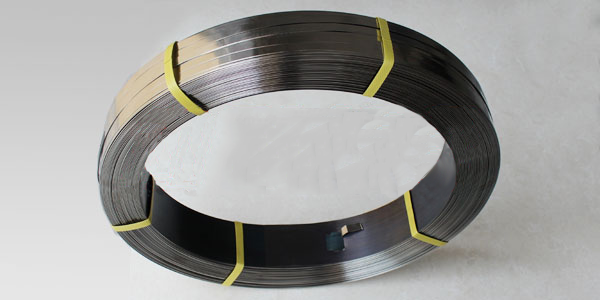

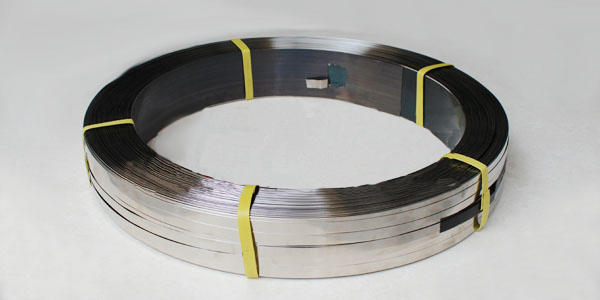

Oscillating Wound Stainless Steel Banding

• ◪
  Oscillating Wound banding, like Ribbon Wound coils, this kind of package applies to fixing or fastening of big size objects. The difference of the two, is that Oscillating Wound coils can be even larger or heavier, could be double or 3 times of Ribbon Wound coils, and banding in this kind of package does not bounce off due to its special rolling way - Oscillating. This package is very suitable for auto machine operation.

Advantage for our company

• Melparts is an insulation fastener manufacturing factory, we manufacture a full series of insulation pins and washers, cooperare with us, we can ensure

• ◪   1: Good price- we sale what we manufacture.

• ◪   2: On-time delivery-we have the auto-production line for every product to ensure the on-time delivery.

• ◪   3: Excellent Quality, we have rich experence for insulation pins, we know the feature about every kind of insuation pin and customer’s requirements.

Specifications

Oscillating Wound Stainless Steel Banding
Banding width available	1/2 inch (12.7mm)      5/8 inch (16mm) 3/4 inch (19mm) For any width over 3/4 inch ( ie, 19mm ), we do not recommend to use Oscillating Wound package, but Ribbon Wound.
Material	201、304、316、316L，317L
Coil width	3 inch ( ie, 76mm ); 2.5 inch ( ie, 64mm ) Inside diameter of Oscillating Wound banding: 16 inch ( ie, 406mm ).
Application	For bundling cables, billboards, traffic signs, pipes, water-cooled cables, etc.
Can be matched	And can be supplied to clients in complete sets with accessories including tooth buckles, wing seals clips, toggles.
